Welcome to your new vision poi! This page includes information about how to:
- Charge your lights
- Size your leashes
- Links to useful flowOS resources (navigation, modes, button presses)

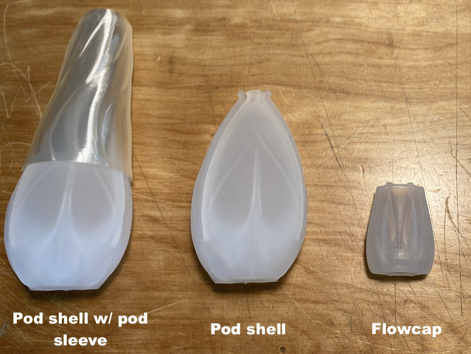

Depending on which type of rig you have, the end cap will be different. We've included a photo of the various options below.
How to charge:
In order to access the charging port on your vision lights, you'll need to remove the end cap.
If you have a flowcap
Twist to release the buttons and pull.
To install the flowcaps to flowtoys tubes, place the cap over tube, push and twist until flowcap buttons click into the tubing holes.
Tip 1: Hold the cap closer to the top where the buttons are, twisting off. If you hold it closer to the bottom of the cap, you will not release the buttons.
Tip 2: It helps to use a bit of "monkey grease" (oils from your hands) or a tiny bit of vaseline on the parts of the tubes that interact with the caps and connectors. This prevents stiction and squeakyness, and generally makes interacting with your caps and connectors a more smooth experience.
If you have a pod shell or pod shell w/ sleeve
Slide the sleeve towards the leash/shaft end of the rig to expose the pod shell. Once you've exposed the pod shell, you can pry it off the tube as shown in the video below.
You can find instructions to install the pod shell in the video as well.
- Features (0:20)
- Installing on tubes (0:35)
- Removing from tubes (1:35)
- Inserting capsule light (2:00)
- Removing capsule light (2:09)
- Capsules need C-ring to attach to pod shell (2:30)
To install a pod shell and sleeve, check out this video:
How to size leashes:

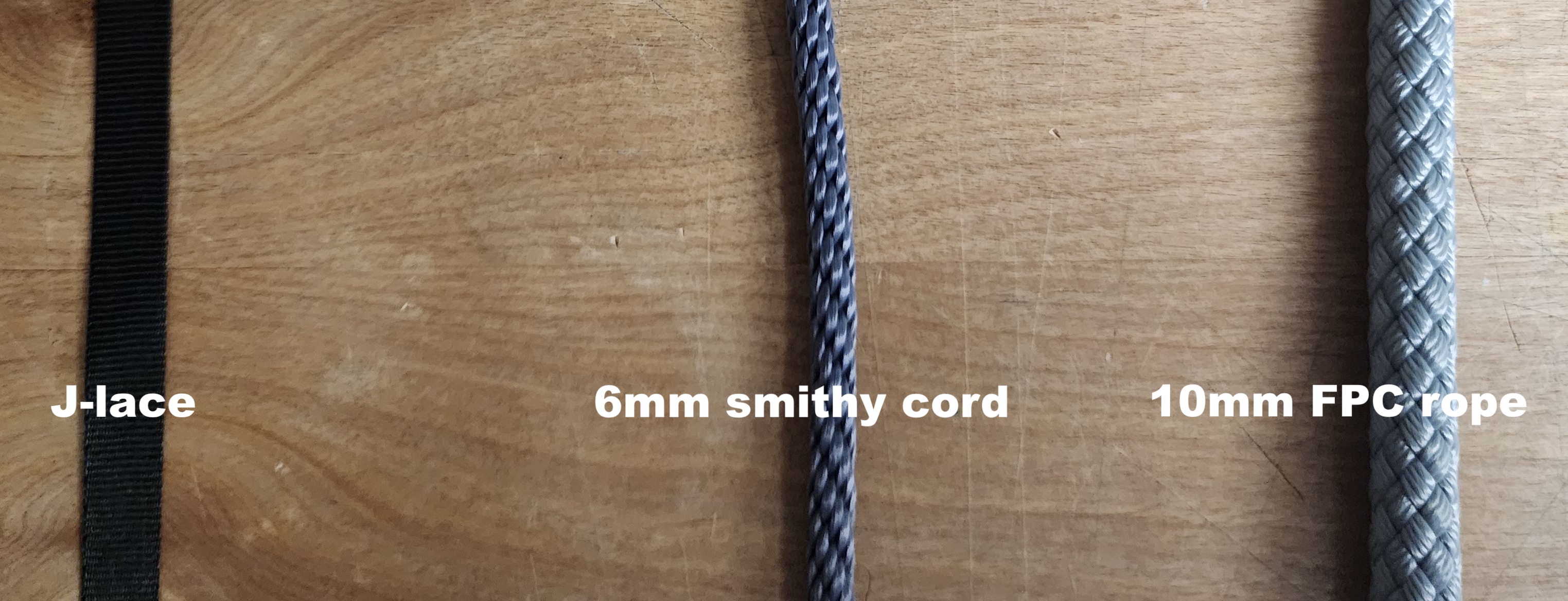

To check which type of cord you have on your rig, refer to the photo below:
For 6mm smithy cord leashes, check out the video below for sizing/finishing instructions:
For 10mm FPC leashes, check out the video below for sizing/finishing instructions:
Other useful resources to get the most out of your vision poi:
- the Pages interface :: pages 1-13 overview - This covers the various mode/settings pages and how to navigate between them
- types of button presses - This covers how the button presses that allow you to cycle through different modes/pages, adjust modes and settings, save modes to your favorites page, and much more.
- vision core :: modes table, adjust parameters & kinetic responses- This illustrates how the different modes look, their adjustment parameters, types of kinetic responses, and average run times.
