Welcome to your new LED dart!


Whether you have a pod dart, martial dart, vision dart or pop'n flow dart, the resources below will help you:

  • attach/size your dart leash
  • understand how the different end cap options work (flowcap, pod shell, pod shell + sleeve)
  • charge your lights
  • access the wide range of modes/settings for each light engine option.


Check out the video below for information on how to:

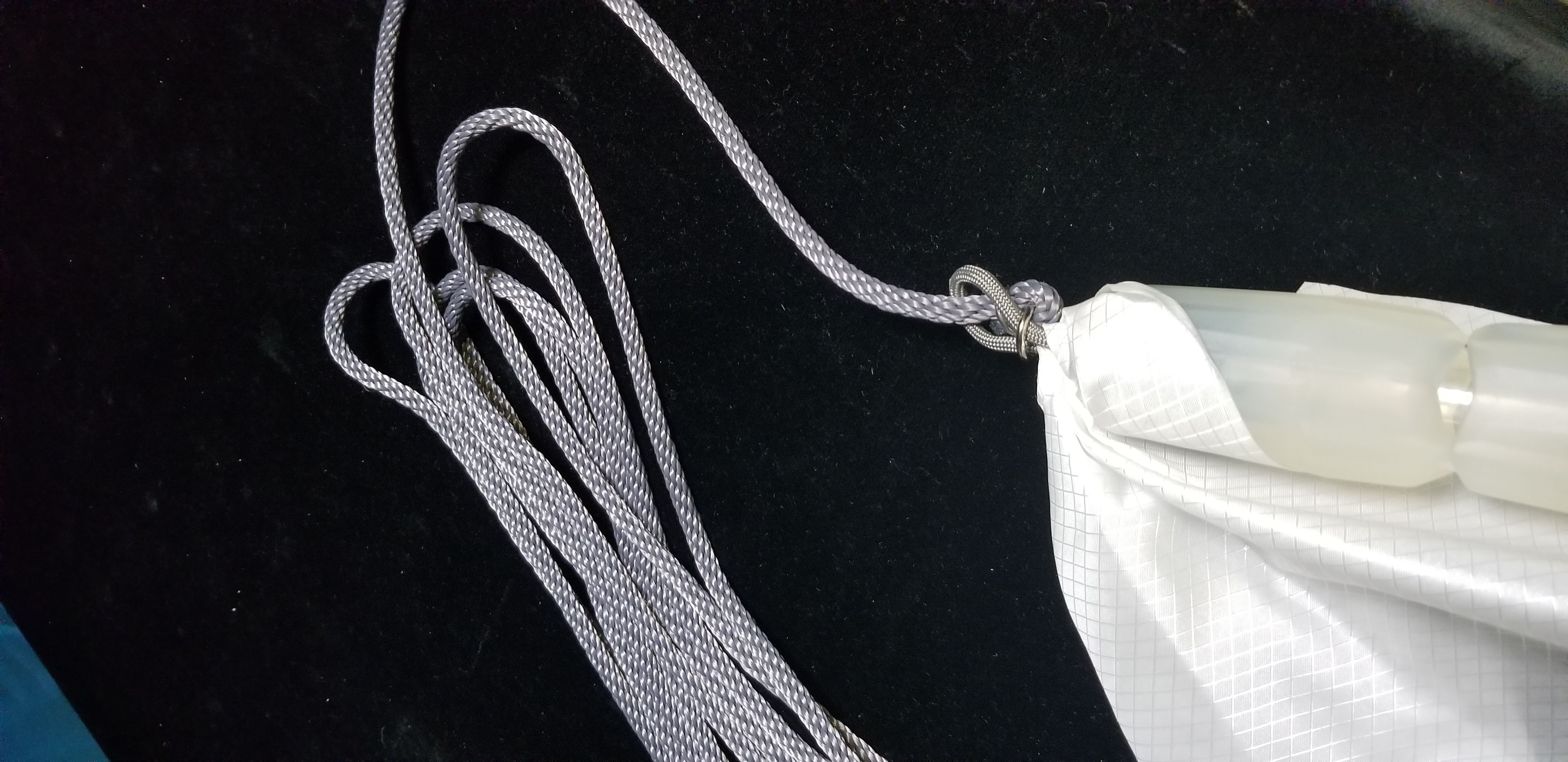

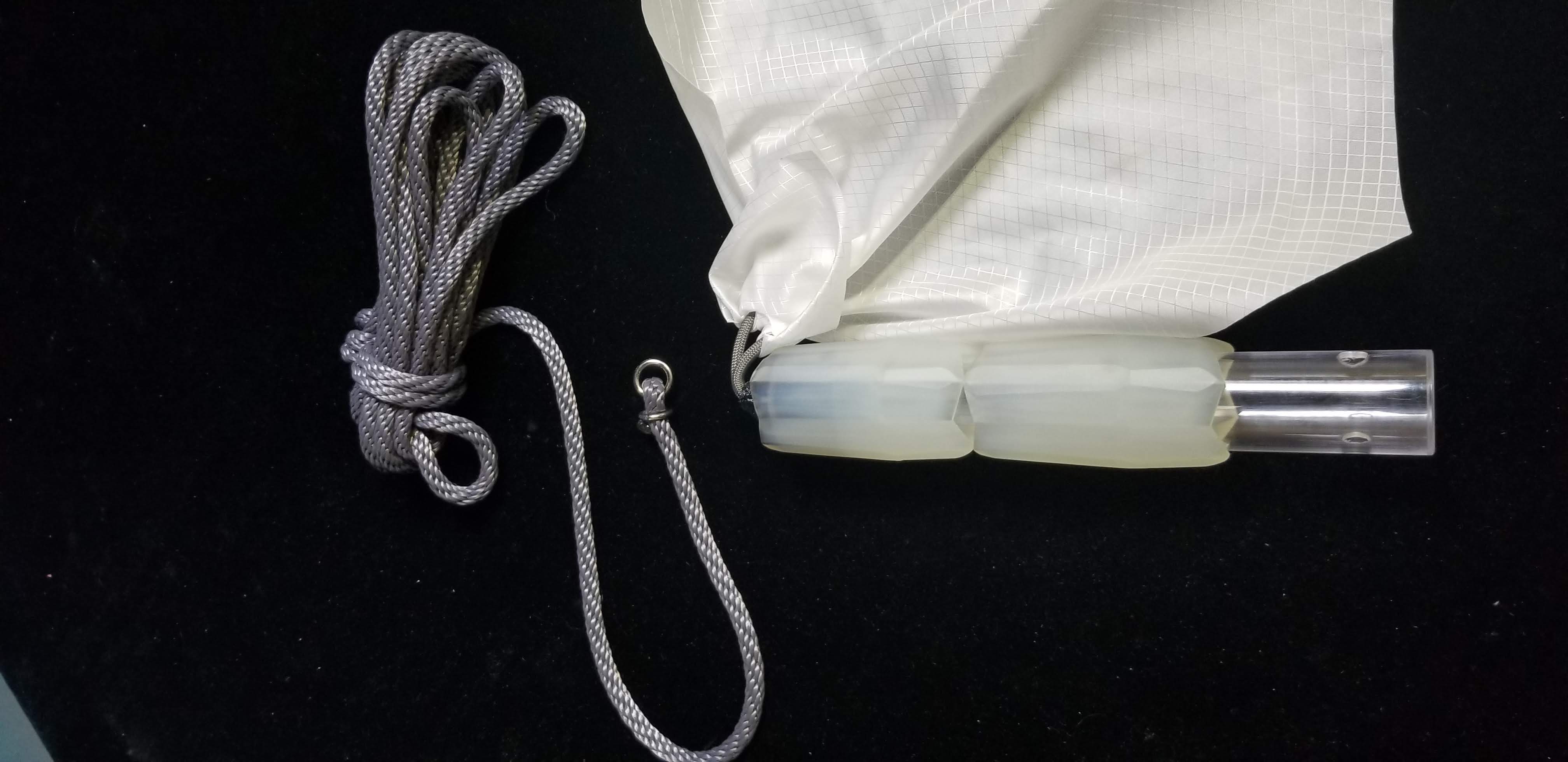

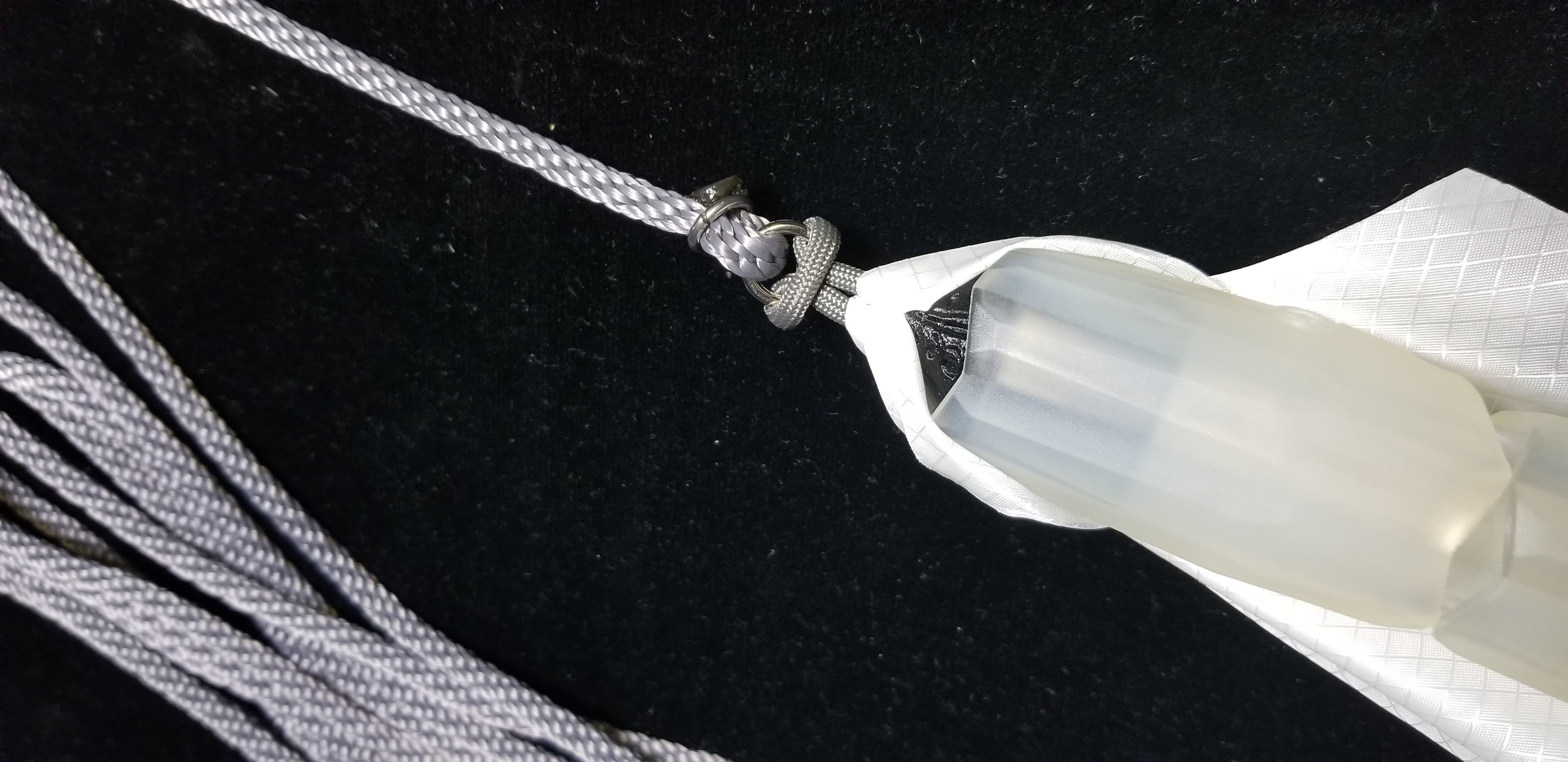

  • attach the leash to the dart head

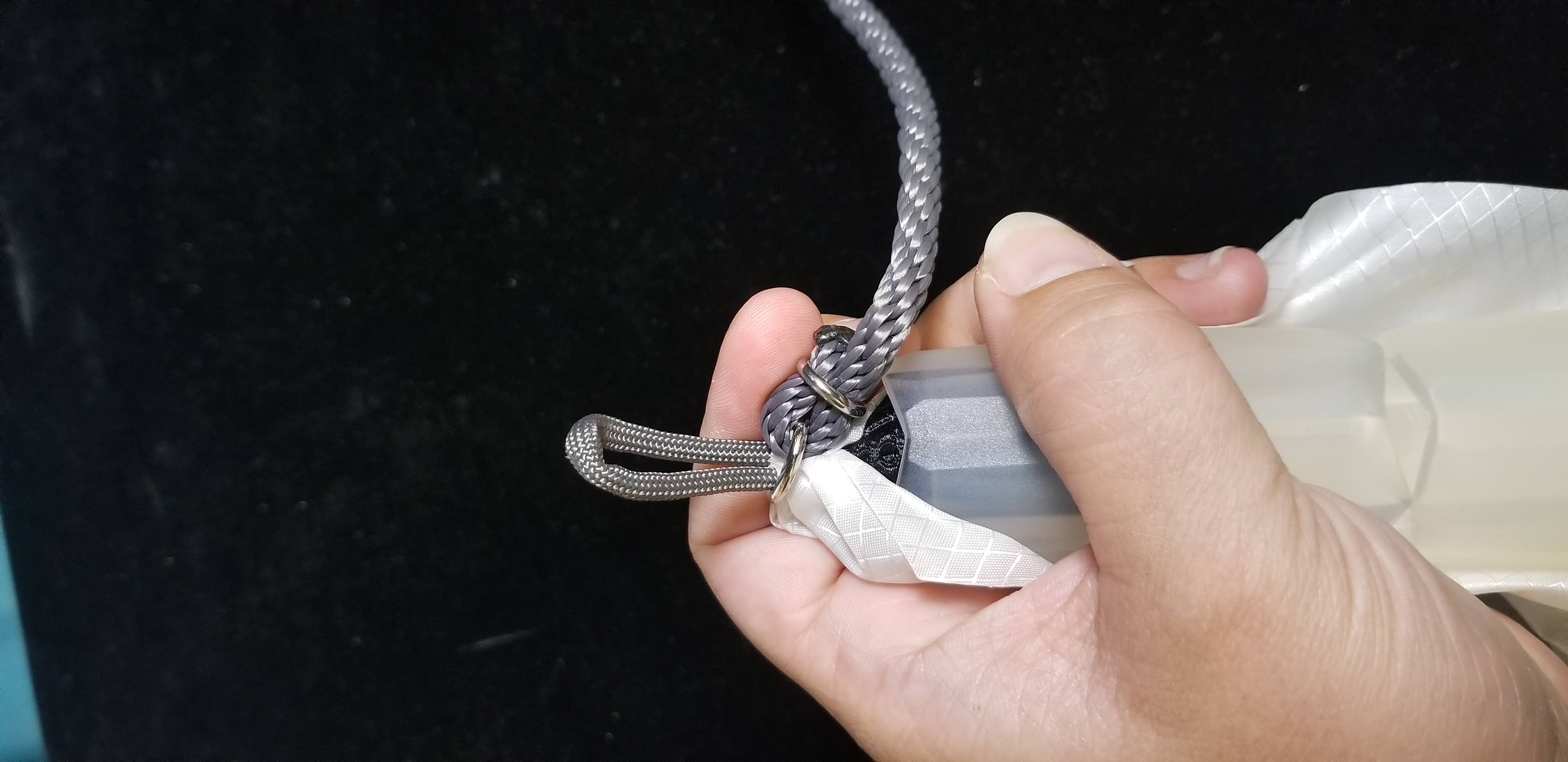

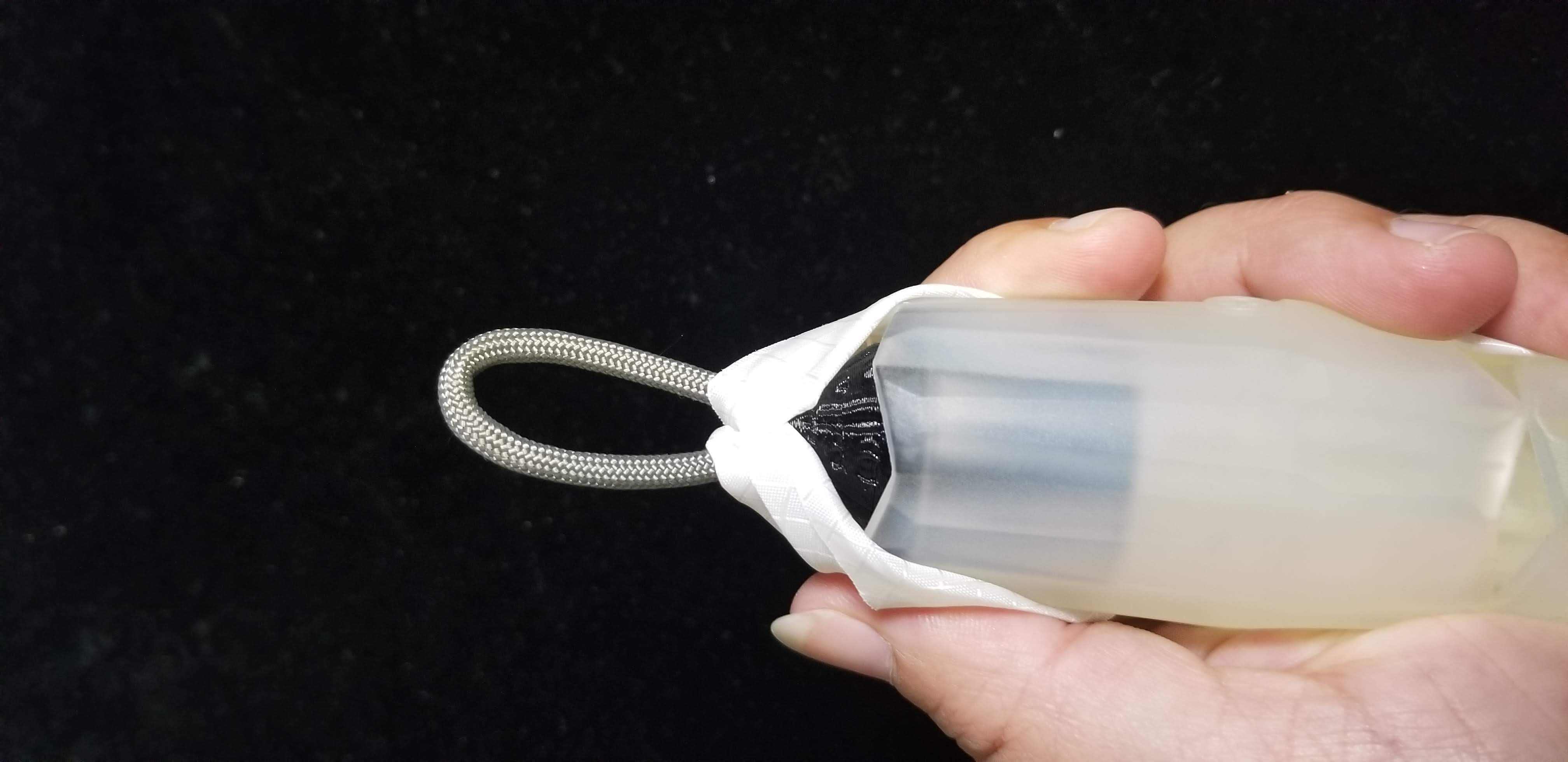

  • how to attach the dart leash to your wrist

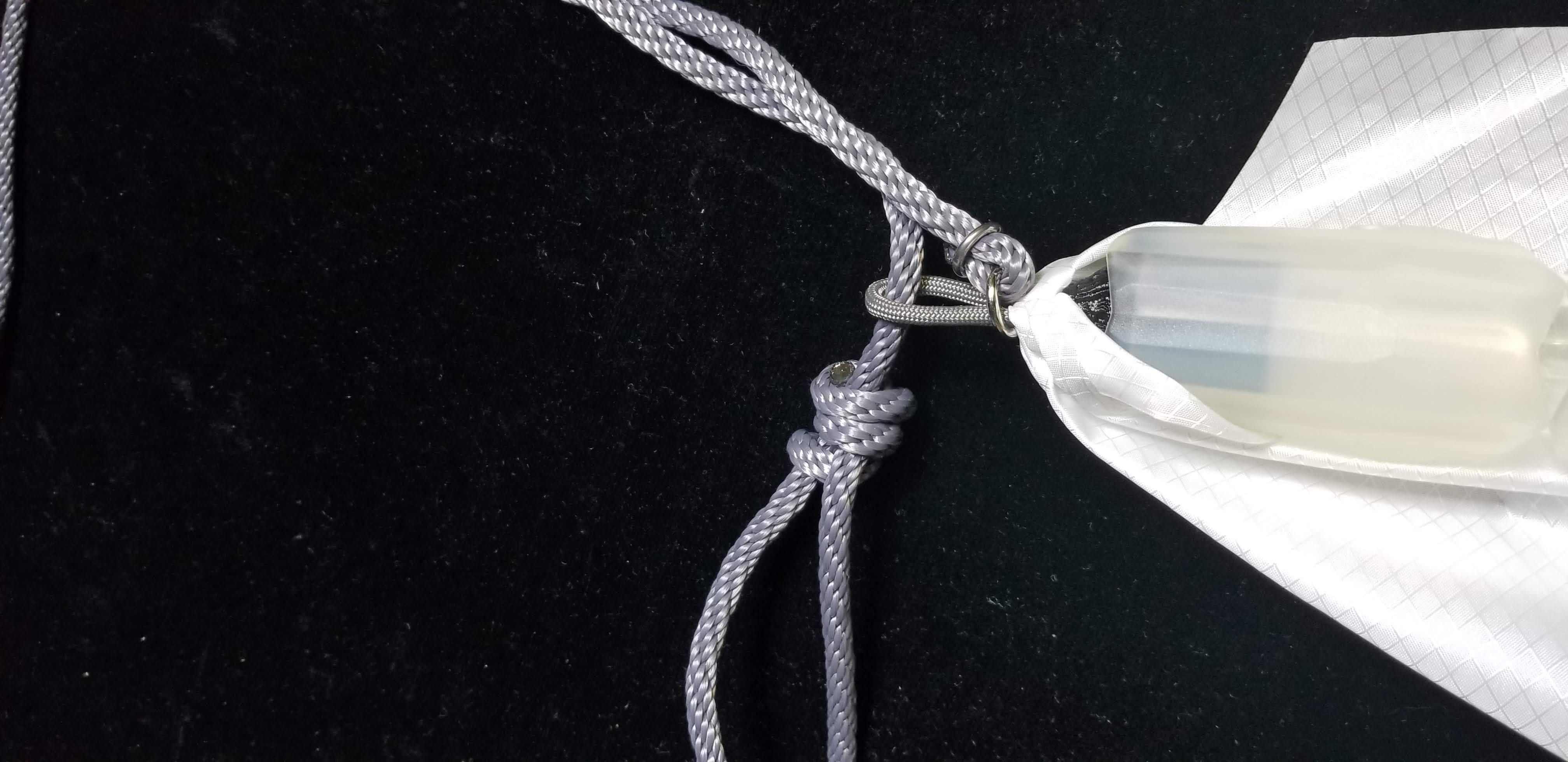

  • how to size the dart leash





Charging your lights


We offer a range of different LED darts with different end cap options. Check out the photo below to see which one you have:




If you have a pod shell w/ sleeve (vision or pop'n flow dart)


Slide the sleeve towards the leash/shaft end of the rig to expose the pod shell. Once you've exposed the pod shell, you can pry it off the tube as shown in the video below.


To install a pod shell and sleeve, check out this video:




If you have a flowcap (martial flowdart)


Twist to release the buttons and pull.




To install the flowcaps to flowtoys tubes, place the cap over tube, push and twist until flowcap buttons click into the tubing holes.


Tip 1: Hold the cap closer to the top where the buttons are, twisting off. If you hold it closer to the bottom of the cap, you will not release the buttons.


Tip 2: It helps to use a bit of "monkey grease" (oils from your hands) or a tiny bit of vaseline on the parts of the tubes that interact with the caps and connectors. This prevents stiction and squeakyness, and generally makes interacting with your caps and connectors a more smooth experience.



If you have a pod shell (pod dart)


In most cases you can access the capsule light USB charging port through the slits in the pod shell petals. If you the USB port is misaligned, you can access the light by removing the tri-ring from the top of the pod shell.



You can find instructions to install the pod shell in the video as well.



  • Features (0:20)
  • Installing on tubes (0:35)
  • Removing from tubes (1:35)
  • Inserting capsule light (2:00)
  • Removing capsule light (2:09)
  • Capsules need C-ring to attach to pod shell (2:30)




Other use resources to help you get the most out of your v2 capsule/vision lights:



If you have flowlights, check out these resources instead:

  • Page navigation - This covers the various mode/settings pages and how to navigate between them
  • Flowlight-FS mode chart - This illustrates how the different modes look, their adjustment parameters, types of kinetic responses, and average run times.
  • Adjustable settings - This covers the range of adjustable settings and how they work



If you have any questions or need any other help, please feel free to contact us!
